Solar Pump Monitoring and AI-Ready Optimization

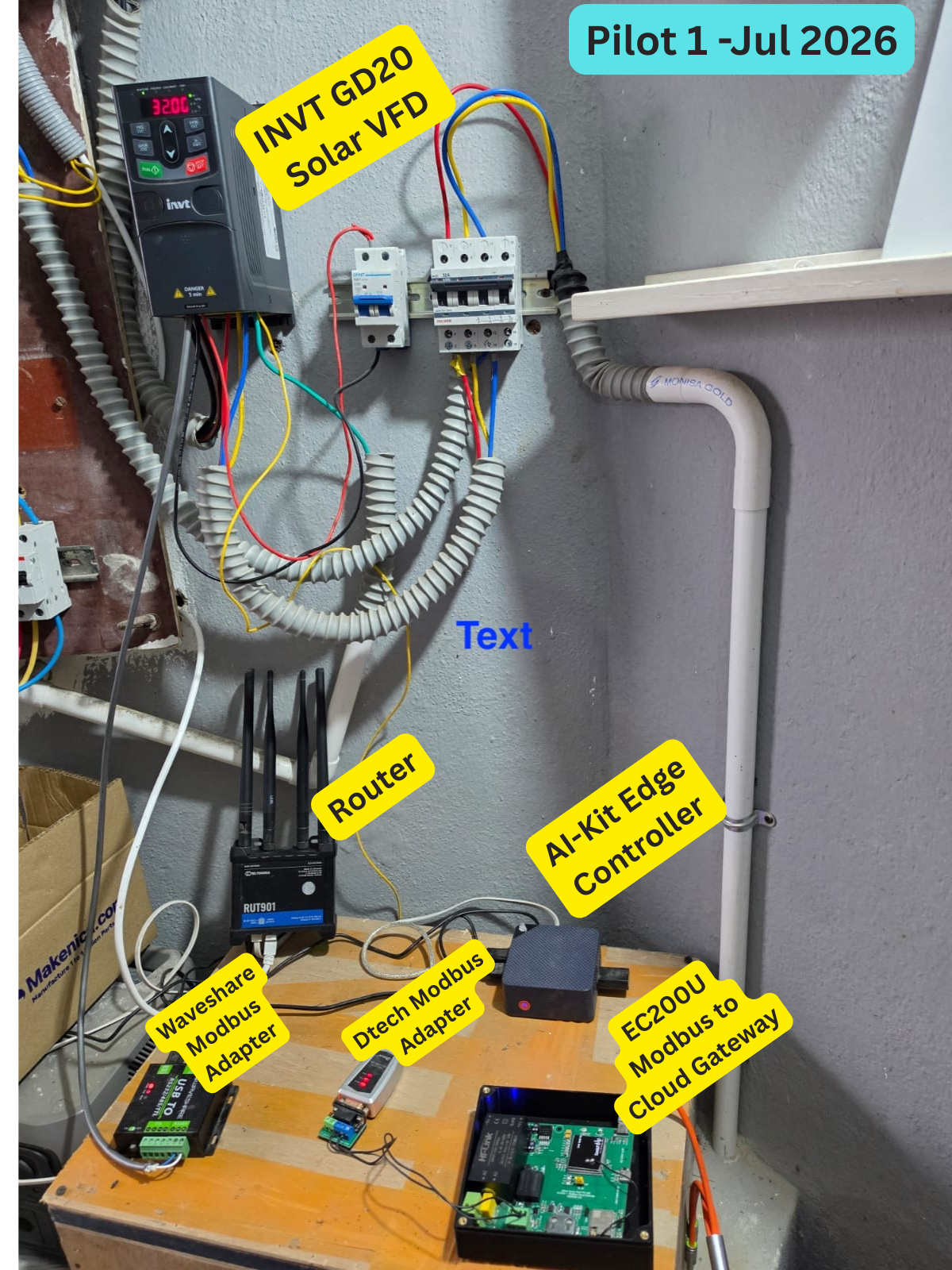

A working field deployment at Concorde Silicon Valley, Bengaluru, combining a solar-powered pump, INVT GD20 VFD, Modbus telemetry, an industrial cloud gateway and the AI-Kit digital platform.
Explore this asset safely through its simulation experience. The physical Pilot-1 pump is not controlled.
Energy Source
Solar PV to Water Lifting
Solar energy is converted through the VFD into controlled three-phase power for the water pump.
Edge Connectivity
Modbus and LTE Gateway
Operating parameters are captured from the field equipment and transmitted securely to the cloud platform.
Intelligence Layer
AI-Ready Digital Twin
The platform supports condition monitoring, performance analysis, recommendations and predictive development.
Live Field Data
Pilot-1 Operating Telemetry
Latest measurements received from the connected Pilot-1 asset.
Device
AST-P1-001
Run Status
STOPPED
Motor Voltage
0 V
Motor Current
0 A
Frequency
0 Hz
Flow
—
DC Bus Voltage
85.5 V
Temperature
25.2 °C
Fault / Status
0.0
Last Update
30 Jul 2026, 6:48 pm
Field Demonstration
Solar Energy to Water Lifting
This field video demonstrates the complete physical outcome: solar energy driving the pump and lifting water at the Pilot-1 deployment.
✓ Operational solar pump installation
✓ VFD-controlled motor operation
✓ Cloud-connected field telemetry
✓ Foundation for AI-based optimization
Industrial Connectivity

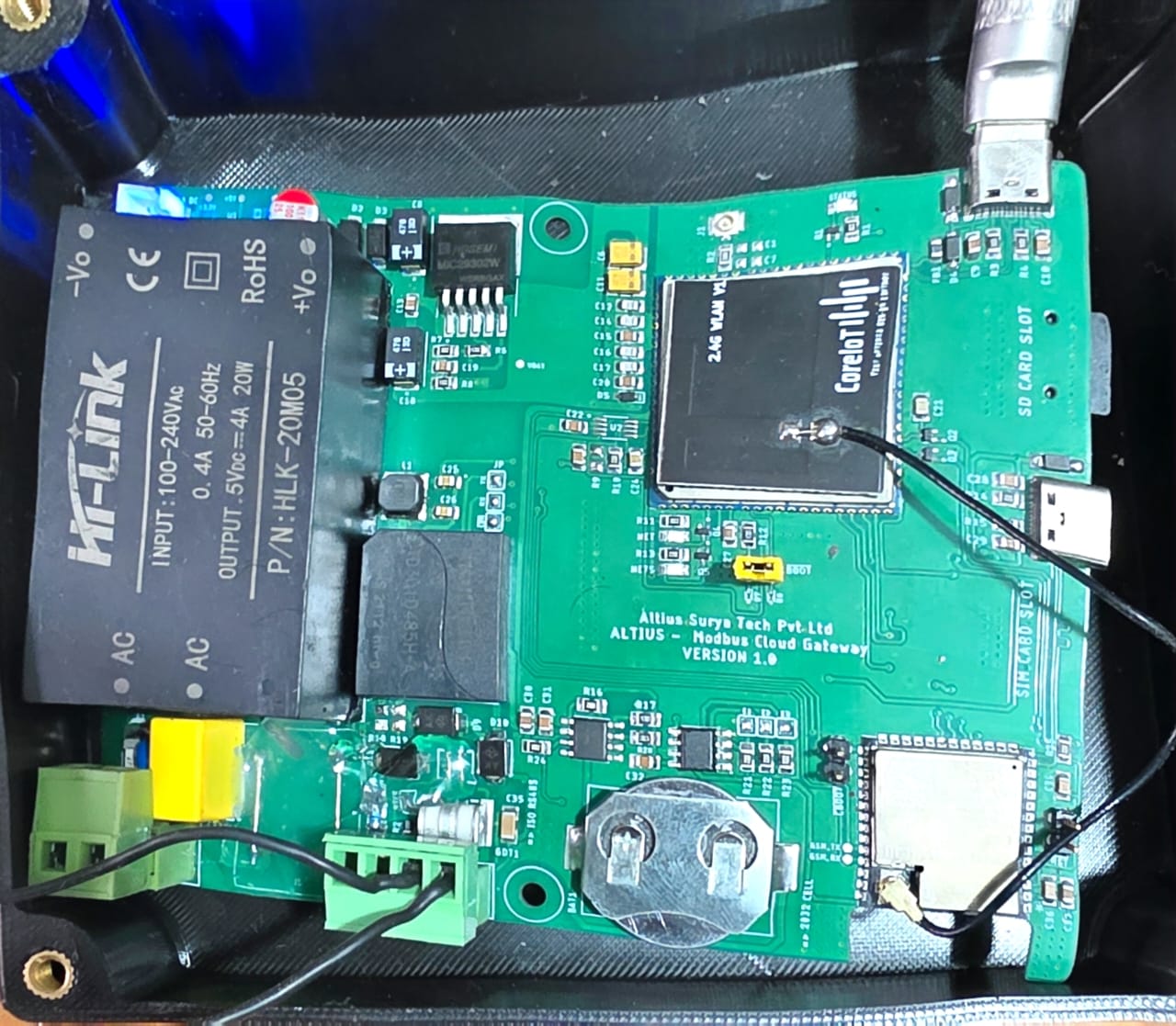

EC200U Modbus-to-Cloud Gateway
The EC200U gateway provides the communications bridge between field equipment and the AI-Kit cloud platform. It supports Modbus telemetry acquisition and LTE-based data transfer for remote asset visibility.
Altius Surya Tech Pvt. Ltd.
From Connected Asset to Intelligent Solar Infrastructure
Pilot-1 demonstrates how existing solar pumping equipment can become visible, measurable and AI-ready through edge connectivity, cloud telemetry and digital-twin technology.
